Didelės spartos popieriaus dėžutės klijavimo priemonė

Automatinis aplankų klijuotojas su 4/6Corner

Modelis: LG800C (išskyrus purškiamų klijų sistemą)

Automatinė kartoninių dėžių lankstymo klijavimo mašina (LG800) yra labai stabili didelės-tūrio mašina, kuri gali duoti daugiau pelno klientams.

Turi 4/6 kampo funkciją. Kiekvieną komplektą valdo nepriklausomas variklis. Jis naudoja ESC, PLC, importuotus elektroninius komponentus ir trijų -plotų sekimo režimų įrangą.

Pagrindinės funkcijos

1) Visa mašina pritaikyta lazeriu{1}}pjaustytų plieno plokščių struktūra.

2) Klijų{1}}purškimo sistema (trys pistoletai ir trys jutikliai) neprivaloma.

3) Vidiniai kurjeriai mašinoje reguliuojami varikliais.

4) Plazminė sistema neprivaloma.

5) Dėžių apdorojimo duomenis galima išsaugoti kompiuterinėje valdymo sistemoje (pasirinktinai).

6) padėties indikatorius (pasirinktinai)

7) Kintamasis reguliavimas.

8) Išankstinio-lankstymo skyrius, 180 laipsnių sulankstymas pirmajai eilutei, 135 laipsnių sulankstymas trečiai eilutei, jie lengvai atidaromi iš anksto -sulenkus.

Specifikacija:

Popieriaus dydis

◆ straight line box WL: max 800800 mm min 9060 mm

◆ lock bottom box WL: max 700800 mm min 15060 mm

Maitintier

◆ MIKI-pulley infinite speed variator 1/set.

◆ Independent adjust feeding belt, ensure the smoothly paper feeding.1set/6pcs,size: 1026308mm

◆ Independent motor, inverter adjust speed, effectively ensure the balance of paper spacing.

◆ Paper carry rod with high performance Taiwan-made vibrating motor.

◆ Air feeding device.(optional)

Lygiavimasvienetas

◆ Aligning the askew paper wihch from feeder, make sure the paper running in straight line.

◆ Alignment unit can be adjusted up and down, suitbale for different thickness paper stably.

◆ correct the paper, avoiding the paper going to two sides.

Du diržai: 2145344 mm

Iš anksto-lankstomas blokas

◆ 2 plate conveyor belt structure, segmenting left and right upper belt plate can be adjusted according to product demand, fast and efficient.

◆ three long top courier in this section, 180 degree folding could be preformed

Nitta diržai: 1 kompl

specifikacijos: 1985243mm-2vnt 3375243mm-2vnt

5000444mm-1vnt 5000244mm-1vnt 4755304mm-1vnt

Avarijos{0}}užrakto blokas

◆ 3 plate conveyor belt board structure, segmental upper belt board function is the same as the prefolding part, eliminate the problems in the production of special-shaped box products effectively.

◆ The upper and middle belt board is detachable, depending on product requirements for disassembly and debugging.

◆ Nitta belts 1set /9 pcs

Specifikacija:

1985243mm-2vnt 3375243mm-1vnt

1780243mm-2vnt 3450244mm- 3vnt

3610304mm-1vnt

◆ Safety door (Optional)

Gliungunitas

◆ The mechanical lower pasting cylinder is designed with separate type of rubber wheel and rubber cylinder, high speed, easy to clean and maintain.

◆ Crashlock, 4/6 corner box ,etc need to equip eletrical spray guns. (recommend 3 or more guns)

◆ width of gluing wheel 4MM (standard), other width could be customized

Sulankstomas blokas

◆ 2 plate conveyor belt board structur.

◆ The left and right outside folding belt speed can be adjusted independently to ensure the molding accuracy.

◆ Wide box type can be matched with middle upper and lower belt plate to ensure stable transportation.

◆ Nitta belts 1set /8pcs

Specifikacija:

2785243mm-1vnt 4565243mm-1vnt

3175243mm-1vnt 7320344mm-3vnt

7520354mm-2vnt

Spaudimasvienetas

◆ Independend inverter adjust speed, proportional linkage to main engine under automatic model, adjusting separately with the same speed as the main engine under manual.

◆ Upper and lower belt telescopic adjustment is simple and easy to operate.

◆ Equipped with high speed electronic kick counter.

Transporto vienetas

◆ In automatic mode, the paper box spacing is set. The pressure belt speed is connected with the belt speed of the main engine in proportion. When photoelectric monitoring the paper box, the leather moves.

◆ In manual mode, the pressure belt is delivered at a constant speed, which is not affected by the machine speed.

◆ The pressure part adopts the pressure type pressing, the pressure control is more accurate, the product bonding effect is more guaranteed.

4/6 kampo funkcija (pasirenkama)

◆ All types and most sizes of 4/6 corner boxes can be quickly set up.

◆ the inclined frame according to the page size of the paper box adjustable.

◆ 45 degrees guide plate, suitable for all the size of the paper box.

◆ modular folding hook running track, high speed and high quality production.

Elektros ir pavaros sistemos

◆ Schneider brand inverter is used to realize synchronous speed regulation of the main engine, making the speed change, adjustment, stability and reliability.

◆ Humanized design of hd touch screen, fully consider the operator's convenience.

◆ Schneider brand PLC is adopted, and a number of safety protection devices are added, making the operation of the machine more safe and reliable.

◆ Control panel, layout more reasonable, icon prompt, simple and easy to understand with remote control switch, make the operation more convenient.

Pagrindinių dalių sąrašas

1.Elektrinė dalis

2.Diržas

3.Pneumatinis elementas

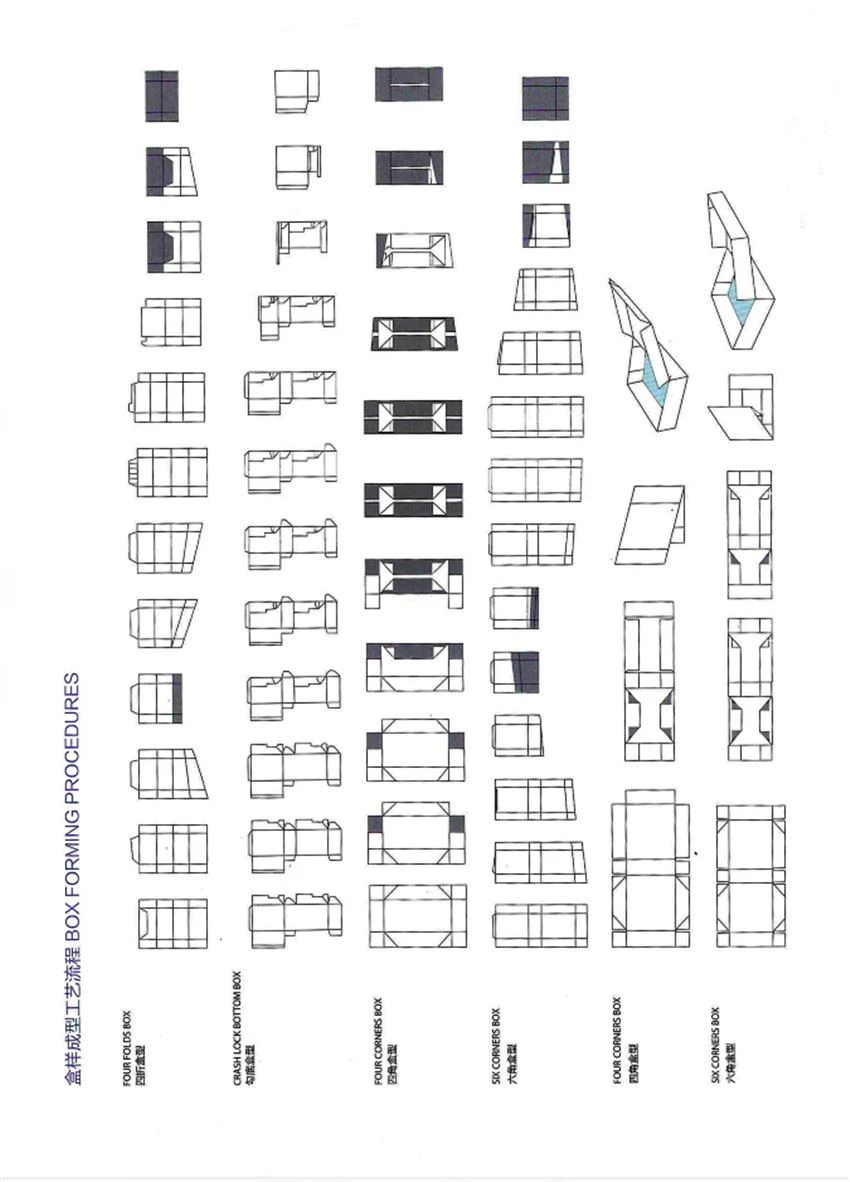

DĖŽĖS PAVYZDŽIAI
